POLYURETHANE 1198 UV-RESISTANT
E

Polyurethane

Selang Tubing PU Clear 1198 UV Resistance

Tubing PU (Polyurethane) 1198 clear adalah selang pneumatik import Italy dengan warna bening dan transparan. Selang PU 1198 memiliki ketahanan yang baik terhadap sinar UV pada semua pilihan warna. Termasuk dalam kategori eter 98 ShA dengan tingkat kekerasan 52 Shore D.

Download Document

Features

Tubing Polyurethane 1190 memiliki tingkat kekerasan 52 Shore D sehingga selang ini tidak mudah rusak namun tetap memiliki flaksibilitas yang sangat tinggi.

Kelebihan Selang PU Bening 1198 UV Resistance

  • Tahan UV dan tahan kelembapan untuk semua warna, sehingga selang lebih awet dan tidak mudah rusak.
  • Memiliki ketahanan dimensi dan abrasi yang baik, namun tetap memiliki fleksibilitas yang tinggi.
  • Warna bening atau clear, pilihan terbaik untuk aplikasi yang membutuhkan pengamatan cairan atau inspeksi visual.
  • Lingkup aplikasi yang luas termasuk untuk otomasi industri, machine tools, vacuum, drag chain (pelindung kabel) dan robotika.

Dapatkan selang PU transparan high quality dan import Italy di PT. Bawalaksana Central Industrial, distributor resmi Mebra Plastik Italia.

Jika Anda sedang mencari selang PU dengan fleksibilitas yang sangat tinggi untuk vacuum dan high movement robots,  kami merekomendasikan selang PU 1185.

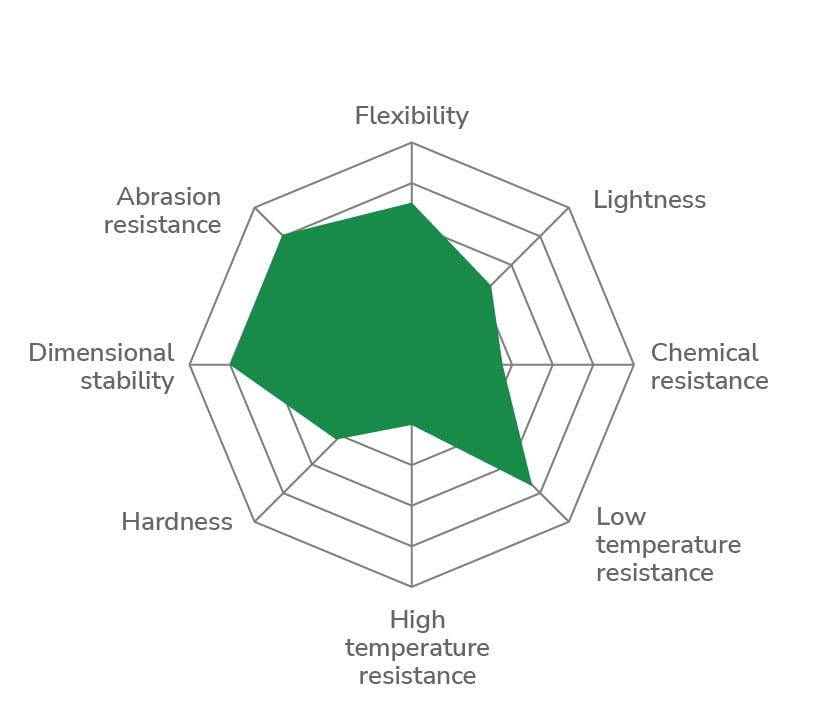

POLYURETHANE 1198 UV-RESISTANT - chart

Standard lengths

^

25-50-100 m

Recommended fittings

All types of pneumatic fittings (quick, semi-fast, cyanfrin, ogiva and rubber carrier).

Sector

INDUSTRIAL

Applications

INDUSTRIAL AUTOMATION

ROBOTICS

UV RESISTANCE

VACUUM

CABLE CARRIER CHAIN

MACHINE TOOLS
HYDROLYSIS RESISTANCE

Products & Details

Part numberInner diameter (iØ)Outer diameter (oØ)Wall thicknessMinimum bending radiusOperating pressure (23°C)Standard colors
198TEA2.5X42.5 mm4 mm0.75 mm15 mm12 BAR
BT
T
AT
198TEA4X64 mm6 mm1.1 mm25 mm11 BAR
N
BT
RT
T
AT
198TEA5X85 mm8 mm1.5 mm30 mm12 BAR
BT
T
AT
198TEA5.5X85.5 mm8 mm1.25 mm40 mm9 BAR
N
BT
T
AT
198TEA6.5X106.5 mm10 mm1.75 mm40 mm11 BAR
BT
T
198TEA7X107 mm10 mm1.5 mm50 mm9 BAR
N
BT
T
B
198TEA7.5X107.5 mm10 mm1.25 mm60 mm7 BAR
BT
VT
T
AT
198TEA8X128 mm12 mm2 mm50 mm10 BAR
BT
RT
T
B
AT
198TEA9X129 mm12 mm1.5 mm70 mm7 BAR
BT
T
AT

Pressure & temperature

^

Operating temperature: from -40°C to 60°C

^

Safety factor on working pressure: 3:1

^

Working pressure 7-12 BAR (23°C)
